● White-Box Digital Modeling Technology with 3rd-party NAM & IR support (5 user slots), delivering more natural, amp-like tone and deeper sound customization than Pocket Master.

● 130+ High-Quality Effects with 9 Simultaneous Effect Blocks, plus dedicated module select buttons for faster, more intuitive on-device control.

● Enhanced Performance Workflow: 100 presets, 100 drum rhythms, 20s looper, tuner, metronome, independent headphone output, and fully flexible signal chain.

● Advanced Connectivity: USB audio interface with loopback & re-amp, OTG support for iOS/Android, wired & wireless BT-MIDI, and EXP/FS input for external expression pedals or footswitch expansion.

● Built for Stage & Portability: True stereo outputs, USB-C, metal footswitches with multi-color LED rings, tap tempo & CTRL switching, powered by 9V DC or USB (not included), with a 2000mAh battery providing up to 4 hours of use.

Description

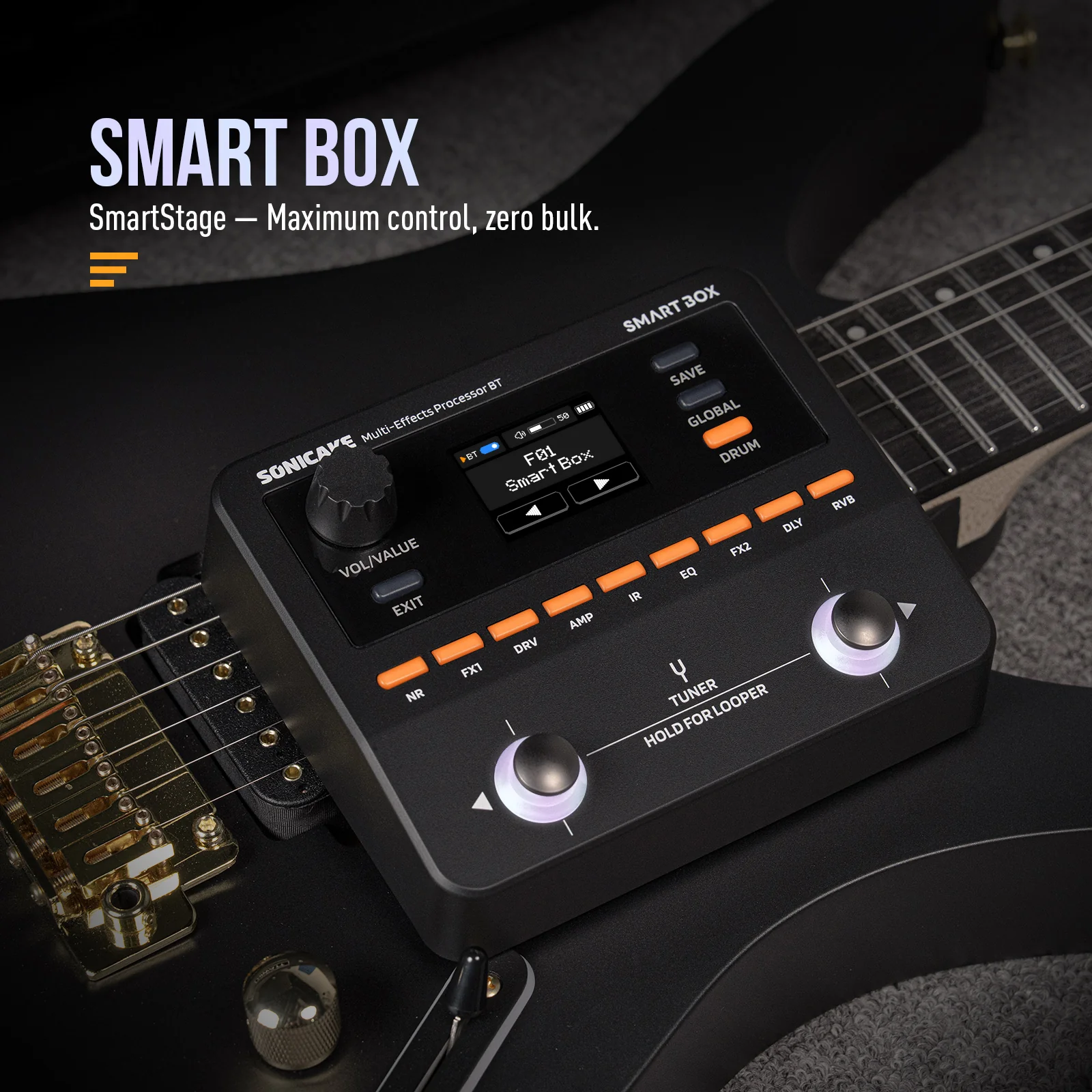

Smart Box redefines portable tone crafting with its proprietary white-box digital modeling, delivering 130+ premium amp and pedal effects alongside NAM/cabinet IR support for limitless sonic exploration. Despite its compact form, it integrates stage-critical features: an HD color LCD for preset clarity, nine quick-access buttons for real-time module control, and mobile app connectivity for deep editing. Stage-ready responsiveness shines through its specially designed footswitches with multi-color LED rings—enabling instant effect toggling and tap tempo, while dedicated expansion ports (TRS for expression pedals/footswitches and wireless for MIDI controllers) unlock pro-level command. Precision performance, unboxed.

USB ASIO Driver
Sonicake USB ASIO Driver V5.57.1

Firmware
Smart Box Firmware V1.0.5

Software for iOS
SONICLINK V1.6.4 (Apple Store - Search "Sonicake" / "Soniclink")

Software for Android
SONICLINK V1.6.4 (Or Google Play - Search "Sonicake" / "Soniclink")

Software for Mac & Windows
Smart Box Software V1.4.2 for Mac
Smart Box Software V1.4.2 for Windows

User Manual
Smart Box User Manual

Features

✪ Excellent white-box digital modeling technology delivering natural, high-quality tone
✪ Dedicated module-select buttons with full-color display for fast on-device control
✪ True stereo 1/4" outputs and independent headphone output
✪ 24-bit / 44.1kHz high-resolution digital signal processing
✪ 130+ high-quality effects with 9 simultaneous effect modules
✪ Editable signal chain with amp, cabinet, and effect blocks
✪ Supports third-party NAM and cabinet IR files (5 user slots)
✪ USB audio interface with 2-in / 2-out stereo streaming, loopback & re-amp support
✪ 100 presets (factory & user), optimized for guitar, bass, and acoustic simulation
✪ 100 drum rhythms, 20-second looper, and built-in chromatic tuner
✪ Intuitive PC/Mac editor and mobile app for deep editing and preset management
✪ Power via DC 9V or USB Type-C, built-in 2000mAh lithium battery

Specifications

A/D/A Converter: 24-bit
Sampling Frequency: 44.1 kHz
SNR: 103dB
Maximum Simultaneous Effects: 9
Preset Memory: 100 Preset slots, 50 Factory Presets
Analog Input Connection
· IN: 1/4" (6.35mm) Unbalanced (TS), 1MΩ
· EXP/FS: 1/4" (6.35mm) TRS
Analog Output Connection
· STEREO OUT: 1/4" (6.35mm) Stereo (TRS), 1kΩ
· PHONES: 1/8" (3.5mm) Stereo (TRS), 22Ω
Digital Connection
· USB Port: USB 2.0 Type-C Port
Size and Weight
· Dimensions: 135mm(W) x 114mm(D) x 51mm(H)
· Unit Weight: 378g
Power
DC Power Requirements: DC 9V center negative, >700mA
USB Power Requirements: Type-C, DC 5V, >1A
· Built-in Lithium Battery: 2000mAh
